Continuous Spiral G Type Fins
Manufacturing of Finned Tubes & Heat Exchangers
The strip is tension wound into a machined groove over the base tube material. This ensures maximum heat transfer at high temperature.
| Maximum Operating Temperature-450° C: | |
|---|---|
| a) Fin Material : | Aluminum / Carbon Steel |
| Fin Height : | 1/2" to 5/8" (12.7 mm to 15.87 mm) |
| Fin Pitch 8fins/inch to 11 fins/ inch (316 fins/meter to 433 fins/meter) | |

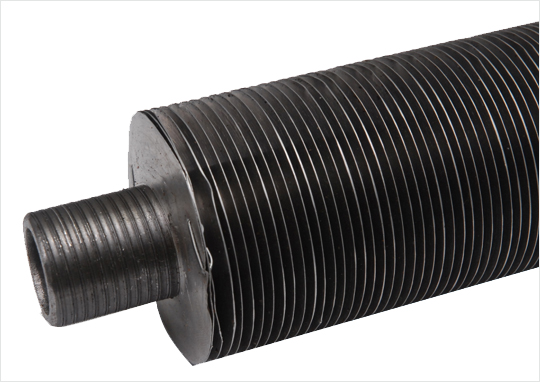

| Continuous Spiral G Type Fins, G Type Finned Tubes Click On Zoom | |
| b) Base Tube Diameter : | 3/4" to 2" (19.05 mm to 50.8 mm) |
| Tube Material : | Carbon Steel / Stainless Steel |
Application
More specifically used in Air Cooled Exchangers OR Condensers
